RB30-1400
RB30-1400

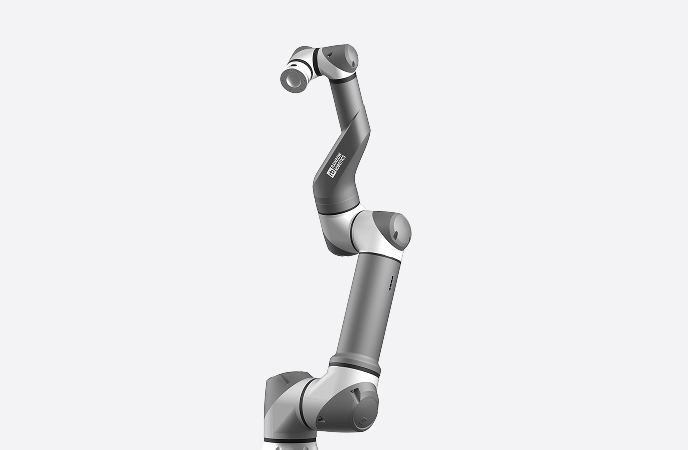

A heavy-payload industrial collaborative robot for large manufacturing processes
- 30 kg Payload
- 1400 mm Reach
- Industrial Automation
- Payload
- 30kg / 66.1 lbs
- Reach
- 1400mm / 55.1 in
- Repeatability
- ±0.05mm
Stable processing of high-load processes
30kg industrial cooperative robot
RB30-1400 provides a payload of up to 30 kg and a reach of 1400 mm. It is designed for stable heavy-part handling and industrial automation.
Based on high torque and a robust joint structure, it delivers productivity and stability in industrial environments that require heavy-duty work, including machining processes, machine tending, part transfer, and assembly automation.
Its IP66-rated industrial environmental design enables stable operation in manufacturing sites with dust, moisture, and washdown conditions.
Key Features
Key Features
Supports 30 kg heavy-payload work

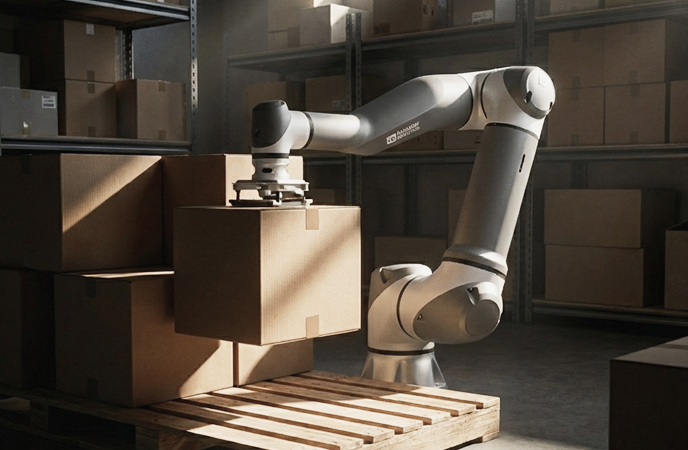

It performs large-part transfer, process automation, and machine tending reliably in industrial environments that require heavy-duty work, maintaining stability through high torque and a robust structure.
Wide work area with 1400 mm reach
A 1400 mm reach covers wide work cells and diverse equipment with a single robot, enabling efficient layouts for multi-process automation lines.
Repeatability of +/-0.05 mm for precision work
High repeatability provides consistent positioning accuracy and stable trajectory quality for assembly, machining assistance, inspection, and other precision tasks.
IP66 industrial environmental design
IP66 dustproof and waterproof protection enables stable operation in industrial sites with dust, moisture, and washdown conditions.
Stable motion quality based on real-time control
Linux-based real-time ROS control enables stable motion even under heavy-payload work. Collision detection and gravity compensation support safe collaborative environments.
Flexible integration with accessories and systems
Standard interfaces such as M8 8-pin I/O, DIN 6-port PNP, and MBus RTU make it easy to integrate grippers, sensors, vision systems, and other peripherals. A 5 m cable expands installation options.
Supports 30 kg heavy-payload work
It performs large-part transfer, process automation, and machine tending reliably in industrial environments that require heavy-duty work, maintaining stability through high torque and a robust structure.
Wide work area with 1400 mm reach
A 1400 mm reach covers wide work cells and diverse equipment with a single robot, enabling efficient layouts for multi-process automation lines.
Repeatability of +/-0.05 mm for precision work
High repeatability provides consistent positioning accuracy and stable trajectory quality for assembly, machining assistance, inspection, and other precision tasks.
IP66 industrial environmental design
IP66 dustproof and waterproof protection enables stable operation in industrial sites with dust, moisture, and washdown conditions.
Stable motion quality based on real-time control
Linux-based real-time ROS control enables stable motion even under heavy-payload work. Collision detection and gravity compensation support safe collaborative environments.
Flexible integration with accessories and systems
Standard interfaces such as M8 8-pin I/O, DIN 6-port PNP, and MBus RTU make it easy to integrate grippers, sensors, vision systems, and other peripherals. A 5 m cable expands installation options.
Specifications
| Payload | 30kg / 66.1 lbs |
|---|---|
| Reach | 1400mm / 55.1 in |
| Repeatability | ±0.05mm |
| Footprint | Ø245mm / No orientation restriction |
| Materials | Aluminum, Plastic, Steel |
| Tool I/O | M8 8-pin connector 2EA (12/24V, ~2A)Power, Din 6 port (PNP), Dout 2 port (PNP), MBus RTUEN ISO 9409-1-80-6-M8 |
| Cable Length | 5m / 196.8 in (Custom lengths available) |
| Weight | 71 kg / 158 lbs |
| Operating Environment | IP66 / 0-50 °C / 32-122°F(≤90% RH non-condensing) |
| Power Consumption | Approx. 500W |
| Noise | 65dB(A) or less |
| Joint Range & Maximum Speed | J1: ±360°. ±120°/sJ2: ±360°. ±120°/sJ3: ±150°. ±120°/sJ4: ±360° ±120°/sJ5: ±360° ±180°/sJ6: ±360°. ±180°/s |
| Maximum TCP speed during normal operation | 2m/s |
Hand Controller
The RB collaborative robot series includes a hand controller. Users can assign desired functions to the hand controller function buttons.
Collaborative Robot Operating System (SW)
In-house software designed for user convenience, integrated with core hardware to deliver high efficiency.
View Details
Standard Robot Control Box CB06
The robot control box controls robot arm motion according to user-created programs.
| Specification | Value |
|---|---|
| I/O Ports | Digital Input 16 (PNP) Digital Output 16 (PNP) Analog Input 4 (0-10V) Analog Output 4 (0-10V) USB (4 ports), LAN (RJ45 1 port) Ethernet (TCP/IP, MODBUS TCP, Control Script) Siemens S7, OMRON Fins, Mitsubishi MC EtherNet/IP, ProfiNet, OPC-UA, etc ※ Dedicated I/O expansion module available |
| Power | 100-240V AC, 50-60 Hz Single Phase |
| Dimensions | 443 x 260 x 371 mm : Body 443 x 260 x 411 mm : With handle |
| Weight | 15kg |
| Materials | Electro Galvanized Steel |
| Certification / Compatible Models | All models |
Teaching Pendant
The Rainbow Robotics teaching pendant makes collaborative robot programming easy.
Dedicated I/O Expansion Module
When additional I/O ports are needed, the dedicated I/O expansion module can expand input and output ports without separate equipment such as a PLC.
| Specification | Value |
|---|---|
| I/O Ports | Digital Input 16 (PNP) Digital Output 16 (PNP) Analog Input 4 (0-10V) Analog Output 4 (0-10V) |
| Power | 100-240V AC, 50-60 Hz |
| Dimensions | 403 x 313 x 110mm |
| Weight | 500g |
| Materials | Aluminum |
| Note | Specifications may change to improve performance. |
