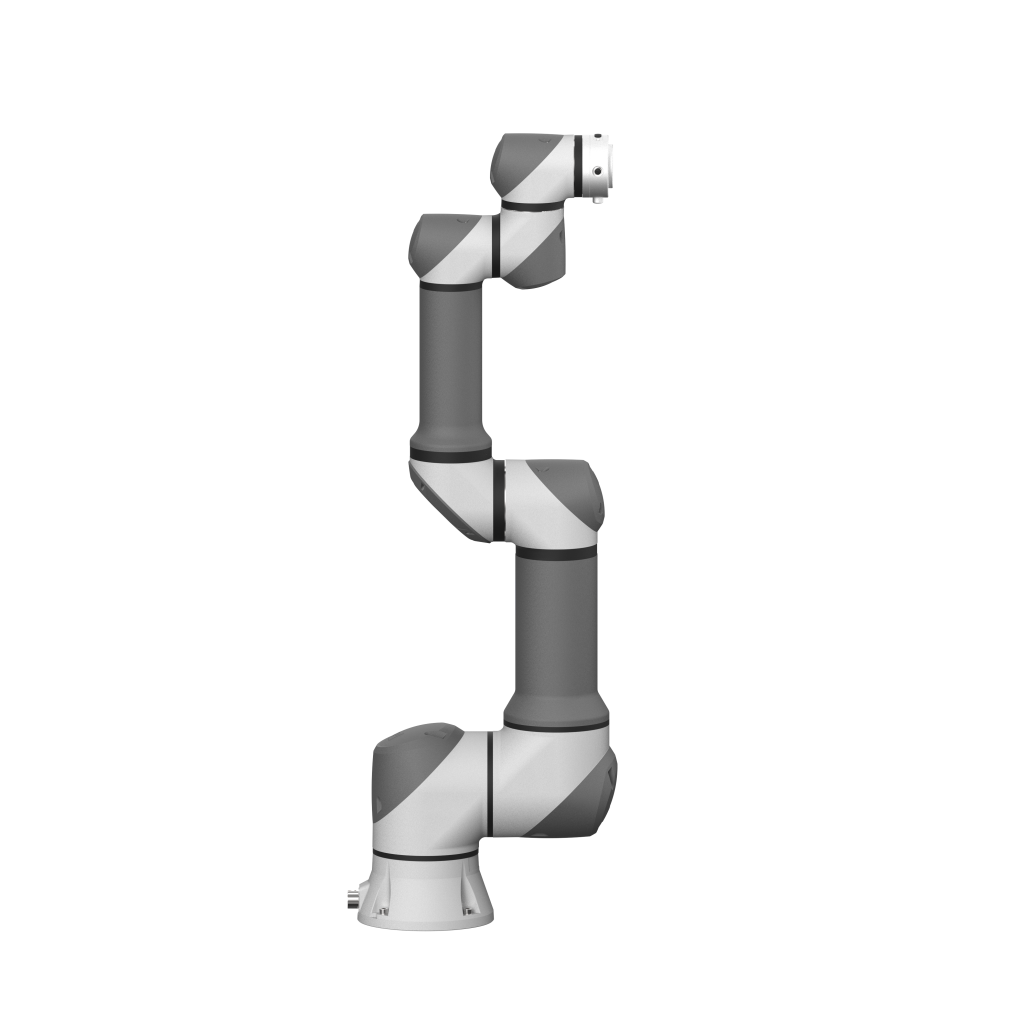

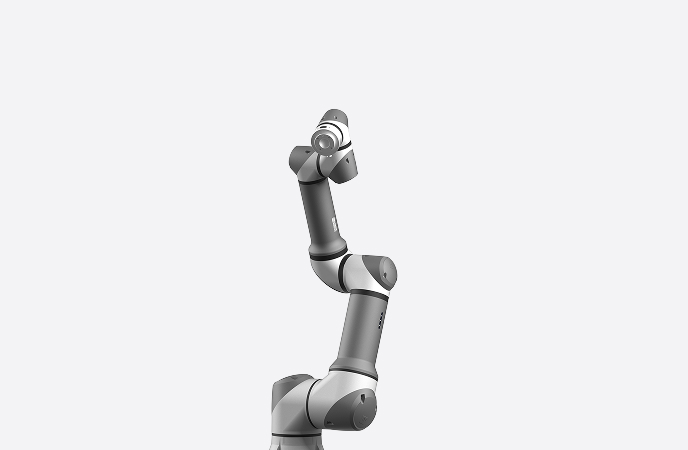

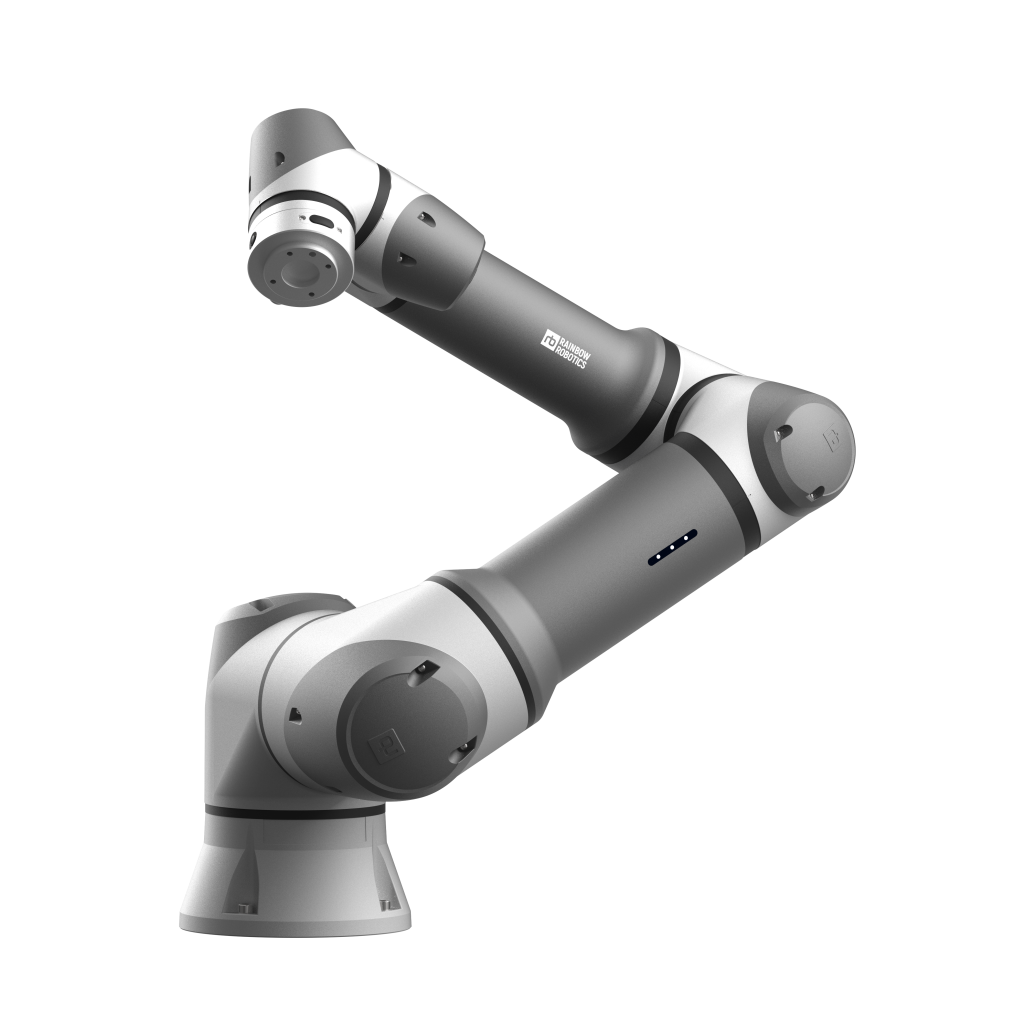

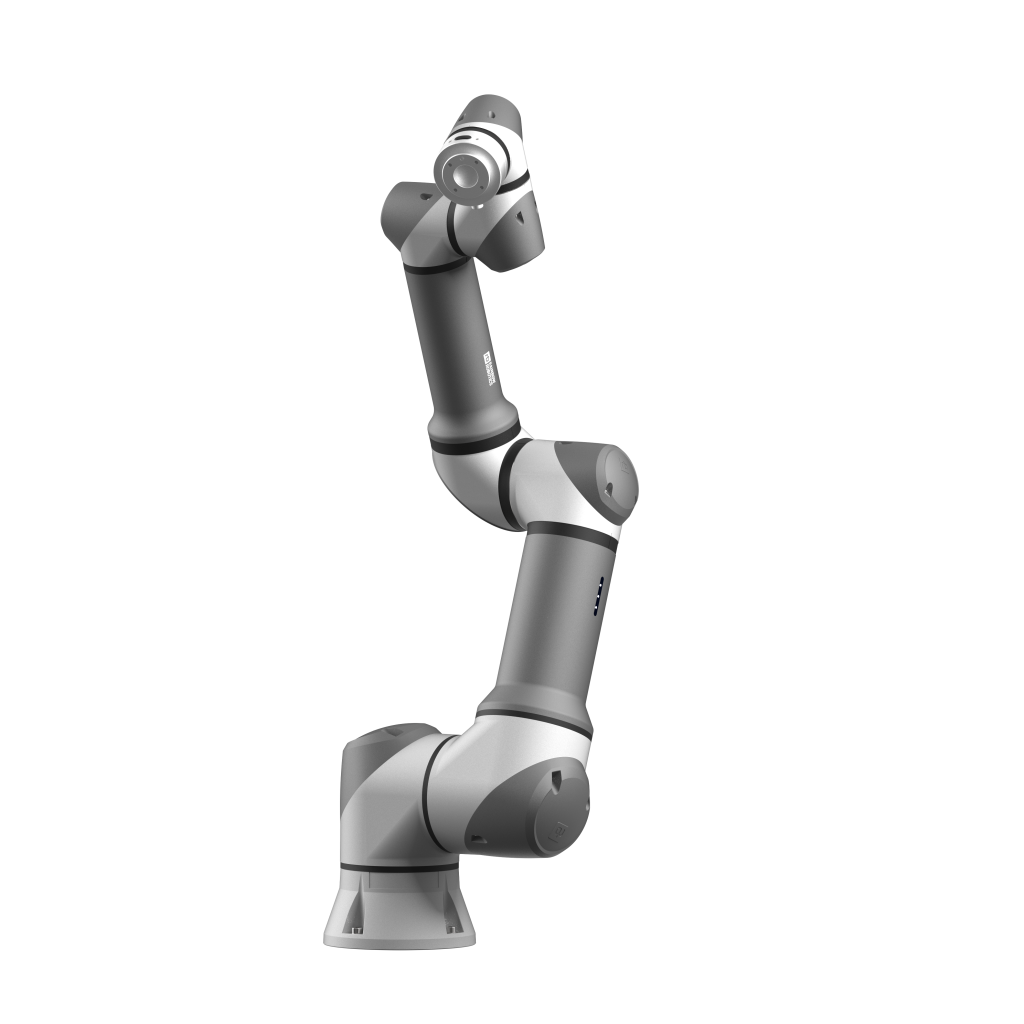

RB16-900
RB16-900
A powerful collaborative robot for 16 kg heavy-payload tasks
- 16 kg Heavy Payload
- Compact High Output
- Short-Range Tasks
- Payload
- 16kg / 35.3lbs
- Reach
- 900mm / 35.4in
- Repeatability
- ±0.05mm
Optimized for near-field, high-load processes
a power cooperative robot
Power Cooperative Robots Optimized for Near Field High Load Processes
RB16-900 is used in industries dealing with heavy components
It is a 16kg high-load cooperative robot,
With a stable working radius of 900mm
It is specialized in processes that require repetitive and strong force at close range.
Metalworking, automobile parts, engine/battery assembly, high weight box transfer, etc
In various industrial processes that require high rigidity and high knowledge
Provides stable performance and continuous iterations.including metalworking, automotive parts, engine and battery assembly, and heavy box transfer.
Key Features
Key Features
Rigid structure for 16 kg payloads
It supports heavy parts reliably and delivers powerful performance in machine tending, metal material transfer, engine assembly, and other high-payload processes.
Compact, power-focused 900 mm reach
Easy to install in limited spaces, it provides a balanced reach structure optimized for close-range heavy-payload work such as press lines, CNC loading, and loading/unloading.
High repeatability of +/-0.05 mm
Even under heavy payloads, it maintains +/-0.05 mm repeatability for stable quality in machine loading and mold-related processes.
Industrial durability with IP54 protection
The aluminum and steel frame with IP54 protection supports continuous operation in dusty, oily, and metalworking environments.
Stable real-time motion quality
Linux-based real-time ROS control maintains smooth trajectories and stable speed while handling heavy loads. Collision detection and gravity compensation are built in.
Highly expandable interfaces and easy installation
M8 8-pin connectors, DIN 6-port PNP, and Dout 2-port interfaces support grippers, vision, sensors, and pneumatic devices. A 5 m cable improves installation flexibility.
Rigid structure for 16 kg payloads
It supports heavy parts reliably and delivers powerful performance in machine tending, metal material transfer, engine assembly, and other high-payload processes.
Compact, power-focused 900 mm reach
Easy to install in limited spaces, it provides a balanced reach structure optimized for close-range heavy-payload work such as press lines, CNC loading, and loading/unloading.
High repeatability of +/-0.05 mm
Even under heavy payloads, it maintains +/-0.05 mm repeatability for stable quality in machine loading and mold-related processes.
Industrial durability with IP54 protection
The aluminum and steel frame with IP54 protection supports continuous operation in dusty, oily, and metalworking environments.
Stable real-time motion quality
Linux-based real-time ROS control maintains smooth trajectories and stable speed while handling heavy loads. Collision detection and gravity compensation are built in.
Highly expandable interfaces and easy installation
M8 8-pin connectors, DIN 6-port PNP, and Dout 2-port interfaces support grippers, vision, sensors, and pneumatic devices. A 5 m cable improves installation flexibility.
Specifications
| Payload | 16kg / 35.4 lbs |
|---|---|
| Reach | 900mm / 35.4 in |
| Repeatability | ±0.05mm |
| Footprint | Ø196mm / No orientation restriction |
| Materials | Aluminum, Plastic, Steel |
| Tool I/O | M8 8-pin connector 2EA (12/24V, ~2A) / Power, Din 6 port (PNP), Dout 2 port (PNP), MBus RTU EN ISO 9409-1-50-4-M6 |
| Cable Length (Robot Arm) | 5m / 196.8 in (Custom lengths available) |
| Weight | 35.5 kg / 78.26 lbs |
| Operating Environment | IP54 / 0-50 °C / 32-122°F] / (≤90% RH non-condensing) |
| Power Consumption | Approx. 350W |
| Noise | 65dB(A) or less |
| Joint Range & Maximum Speed | J1: ±360° ±120°/sJ2: ±360° ±120°/sJ3: ±165° ±180°/sJ4: ±360° ±180°/sJ5: ±360° ±180°/sJ6: ±360° ±180°/s |
| Maximum TCP speed during normal operation | 1m/s |
Hand Controller
The RB collaborative robot series includes a hand controller. Users can assign desired functions to the hand controller function buttons.
Collaborative Robot Operating System (SW)
In-house software designed for user convenience, integrated with core hardware to deliver high efficiency.
View Details
Standard Robot Control Box CB06
The robot control box controls robot arm motion according to user-created programs.
| Specification Item | Specification Value |
|---|---|
| I/O Ports | Digital Input: 16 (PNP) / Digital Output: 16 (PNP) / Analog Input: 4 (0–10 V) / Analog Output: 4 (0–10 V) / USB (4 ports), LAN (RJ45, 1 port) / Ethernet (TCP/IP, MODBUS TCP, Control Script) / Siemens S7, OMRON FINS, Mitsubishi MC, EtherNet/IP, PROFINET, OPC UA, etc. / Dedicated I/O expansion module available |
| Power | 100–240 V AC, 50–60 Hz, single phase |
| Dimensions | 443 × 260 × 371 mm: Controller / 443 × 260 × 411 mm: With handle |
| Weight | 15 kg |
| Material | Electro-galvanized steel |
| Certified/Compatible Models | All models |
Teaching Pendant
The Rainbow Robotics teaching pendant makes collaborative robot programming easy.
Dedicated I/O Expansion Module
When additional I/O ports are needed, the dedicated I/O expansion module can expand input and output ports without separate equipment such as a PLC.
| Specification Item | Specification Value |
|---|---|
| I/O Ports | Digital Input: 16 (PNP) / Digital Output: 16 (PNP) / Analog Input: 4 (0–10 V) / Analog Output: 4 (0–10 V) |
| Power | 100–240 V AC, 50–60 Hz |
| Dimensions | 403 × 313 × 110 mm |
| Weight | 500 g |
| Material | Aluminum |
| Notes | Specifications are subject to change without notice for product improvement. |
Download
Downloads
| Select | Product | Resource type | Resource details | Download link |
|---|---|---|---|---|
| RBC Series Collaborative Robots | Catalog | RBC Series Catalog Catalog | ||
| Technical Data | RBC Series Manual Manual | |||
| RB16-900E Collaborative Robots | Drawing | RB16-900E Drawing | ||
| Certificate | RB16-900E Certificate | |||
| Control box(CB04,CB05) Collaborative Robots | Drawing | Control box(CB04,CB05) Drawing | ||
| Control box(CB06) Collaborative Robots | Drawing | Control box(CB06) Drawing | ||
| Control box(CB07) Collaborative Robots | Drawing | Control box(CB07) Drawing | ||
| Control box(CB08) Collaborative Robots | Drawing | Control box(CB08) Drawing | ||
| Control box(CB09) Collaborative Robots | Drawing | Control box(CB09) Drawing |
