RB3-1200
RB3-1200
A 3 kg collaborative robot optimized for long-reach tasks
- Compact Long-Reach Arm
- AMR-Compatible
- General Automation
- Payload
- 3kg / 6.6lbs
- Reach
- 1200mm / 47.2inch
- Repeatability
- ±0.05mm
providing a wide range of work
Lightweight, Long Rich Cooperative Robot
The RB3-1200 offers the widest range of workspaces in the RB3 lineup,
It supports 1200mm reach, which is rare in a 3kg lightweight cooperative robot.
A single robot can handle the movement of work equipment, pickup zones, and trays within a wide radius
It can greatly increase work efficiency and line placement flexibility.
RB3-1200 is based on lightweight frame structure and precise motion quality
Electronics, bio, experimental automation, precision assembly, packaging, etc
It is a general-purpose automation robot used in various industrial environments.
Key Features
Key Features
Extended 1200 mm work area
Its wide reach is optimized for processes that require expanded coverage, such as equipment-to-equipment transfer, multi-station work, and machine tending.
Lightweight, slim design with a 173 mm body diameter
It can be installed in a wide range of locations with fewer workspace constraints, and the lightweight structure makes moving and mounting easier.
High-quality motion for precision work
+/-0.05 mm repeatability makes it suitable for precision assembly, automated inspection, and other tasks that require stable quality.
Optimized for 3 kg light-payload processes
It delivers high productivity in light, repetitive tasks such as pick and place, testing, labeling, dispensing, and bio-lab automation.
Fully compatible with AMR and AGV platforms
The lightweight structure can be mounted easily on various AMR/AGV platforms, and Modbus and TCP/IP communication support integrated mobile-robot operation.
Easy installation and expandability
Touch UI teaching, hand guiding, collision detection, M8 I/O connectors, and a 5 m cable support convenient operation and flexible integration with tools and equipment.
Extended 1200 mm work area
Its wide reach is optimized for processes that require expanded coverage, such as equipment-to-equipment transfer, multi-station work, and machine tending.
Lightweight, slim design with a 173 mm body diameter
It can be installed in a wide range of locations with fewer workspace constraints, and the lightweight structure makes moving and mounting easier.
High-quality motion for precision work
+/-0.05 mm repeatability makes it suitable for precision assembly, automated inspection, and other tasks that require stable quality.
Optimized for 3 kg light-payload processes
It delivers high productivity in light, repetitive tasks such as pick and place, testing, labeling, dispensing, and bio-lab automation.
Fully compatible with AMR and AGV platforms
The lightweight structure can be mounted easily on various AMR/AGV platforms, and Modbus and TCP/IP communication support integrated mobile-robot operation.
Easy installation and expandability
Touch UI teaching, hand guiding, collision detection, M8 I/O connectors, and a 5 m cable support convenient operation and flexible integration with tools and equipment.
Specifications
| Payload | 3kg / 6.6lbs |
|---|---|
| Reach | 1200mm / 47.2inch |
| Repeatability | ±0.05mm |
| Footprint | ∅ 173 mm / No orientation restriction |
| Materials | Aluminum, Plastic, Steel |
| Tool I/O | M8 8-pin connector 2EA (12/24V, ~2A)Power, Din 6 port (PNP), Dout 2 port (PNP), MBus RTUEN ISO 9409-1-50-4-M6 |
| Cable Length (Robot Arm) | 5m / 196.8 in (Custom lengths available) |
| Weight | 22.4kg / 49.3 lbs |
| Operating Environment | IP66 / 0-50 °C / 32‒122 °F(≤90% RH non-condensing) |
| Power Consumption | Approx. 200W |
| Noise | 65dB(A) or less |
| Joint Range & Maximum Speed | J1: ±360° ±180°/sJ2: ±360° ±180°/sJ3: ±165° ±180°/sJ4: ±360° ±180°/sJ5: ±360° ±180°/sJ6: ±360° ±180°/s |
Hand Controller
The RB collaborative robot series includes a hand controller. Users can assign desired functions to the hand controller function buttons.
Collaborative Robot Operating System (SW)
In-house software designed for user convenience, integrated with core hardware to deliver high efficiency.
View Details
Standard Robot Control Box CB06
The robot control box controls robot arm motion according to user-created programs.
| Specification | Value |
|---|---|
| I/O Ports | Digital Input 16 (PNP) Digital Output 16 (PNP) Analog Input 4 (0-10V) Analog Output 4 (0-10V) USB (4 ports), LAN (RJ45 1 port) Ethernet (TCP/IP, MODBUS TCP, Control Script) Siemens S7, OMRON Fins, Mitsubishi MC EtherNet/IP, ProfiNet, OPC-UA, etc ※ Dedicated I/O expansion module available |
| Power | 100-240V AC, 50-60 Hz Single Phase |
| Dimensions | 443 x 260 x 371 mm : Body 443 x 260 x 411 mm : With handle |
| Weight | 15kg |
| Materials | Electro Galvanized Steel |
| Certification / Compatible Models | All models |
Teaching Pendant
The Rainbow Robotics teaching pendant makes collaborative robot programming easy.

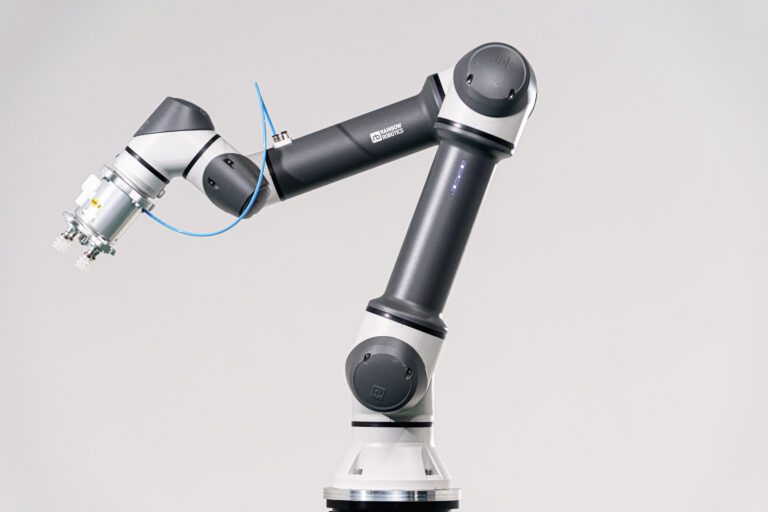

Built-in Pneumatic Option
The first collaborative robot option with built-in pneumatic lines, selectable by pneumatic-line and signal-line configuration.
| Model | Pneumatic Lines | Signal Lines |
|---|---|---|
| RB5-850A1 | 4 EA(Ø 4 mm tube) | None |
| RB5-850A2 | 5 EA(Ø 4 mm tube) | 12 Pin(AWG28) |
| RB3-1200A1 | 4 EA(Ø 4 mm tube) | None |
| RB3-1200A2 | 5 EA(Ø 4 mm tube) | 12 Pin(AWG28) |
| RB10-1300A1 | 1 EA(Ø 8 mm tube) | None |
| RB10-1300A2 | 1 EA(Ø 8 mm tube) | 12 Pin(AWG28) |
| RB10-1300A3 | 4 EA(Ø 4 mm tube) | None |
Dedicated I/O Expansion Module
When additional I/O ports are needed, the dedicated I/O expansion module can expand input and output ports without separate equipment such as a PLC.
| Specification | Value |
|---|---|
| I/O Ports | Digital Input 16 (PNP) Digital Output 16 (PNP) Analog Input 4 (0-10V) Analog Output 4 (0-10V) |
| Power | 100-240V AC, 50-60 Hz |
| Dimensions | 403 x 313 x 110mm |
| Weight | 500g |
| Materials | Aluminum |
| Note | Specifications may change to improve performance. |
