Collaborative Robot Cobot
A perfect partner for people, redefining the standard for industrial automation.
The RBC Series is a lineup of six-axis collaborative robots developed in-house based on Rainbow Robotics' accumulated humanoid robot technology.
Core technologies such as dual-arm and multi-degree-of-freedom control, precision motion control, and human interaction are engineered around the precision and repeatability required in industrial environments, delivering both efficiency and safety in manufacturing and logistics sites.
The RBC Series is also implemented according to ISO/TS 15066, the international collaborative robot safety technical specification defined under ISO 10218-1, enabling safe and convenient use in shared spaces with people.
Collaborative Robot Cobot
The RBC Series includes a wide range of products that can be applied to each user's work environment. It is a full lineup that lets users choose different work ranges, payloads, and arm lengths to maximize productivity and process efficiency.
Payload
3kg
Reach
730mm
Footprint
Ø128mm / No direction restriction
Weight
11kg

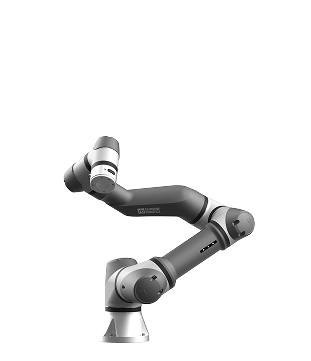

RB3-730
Payload
3kg / 6.6lbs
Reach
1200mm / 47.2inch
Footprint
∅ 173 mm / No orientation restriction
Weight
22.4kg / 49.3 lbs

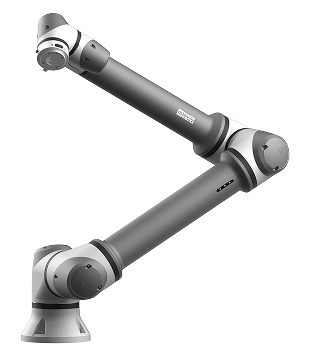

RB3-1200
Payload
5kg / 6.6lbs
Reach
927.7mm / 36.5 in
Footprint
Ø173 mm / No orientation restriction
Weight
22 kg/ 48.5 Ibs

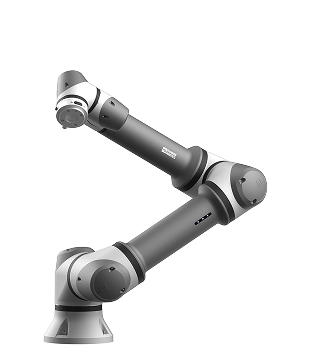

RB5-850
Payload
6kg / 13.2 lbs
Reach
1700mm / 66.9 in
Footprint
Ø196mm / No orientation restriction
Weight
39 kg / 86 lbs

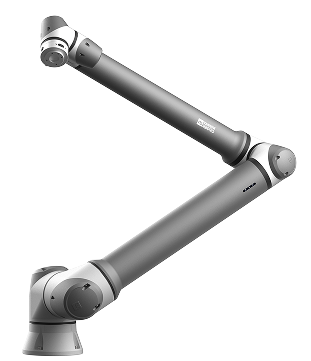

RB6-1700
Payload
10kg / 22 lbs
Reach
1300mm / 51.2 in
Footprint
Ø196mm / No orientation restriction
Weight
36.5 kg / 80.47 lbs

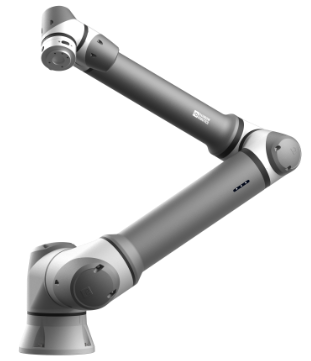

RB10-1300
Payload
16kg / 35.4 lbs
Reach
900mm / 35.4 in
Footprint
Ø196mm / No orientation restriction
Weight
35.5 kg / 78.26 lbs

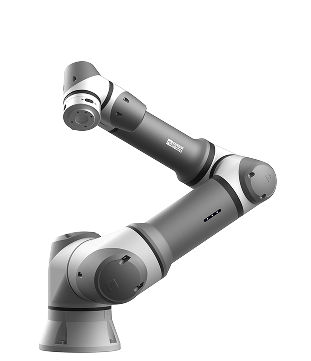

RB16-900
Payload
20kg / 44 lbs
Reach
1800mm / 70.8 in
Footprint
Ø245mm / No orientation restriction
Weight
70.5 kg / 155.4 lbs
RB20-1800
Payload
20kg / 44 lbs
Reach
1900mm / 74.8 in
Footprint
Ø245mm / No orientation restriction
Weight
75 kg/ 165.3 lbs

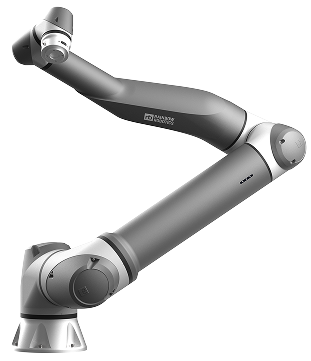

RB20-1900
Payload
30kg / 66.1 lbs
Reach
1400mm / 55.1 in
Footprint
Ø245mm / No orientation restriction
Weight
71 kg / 158 lbs

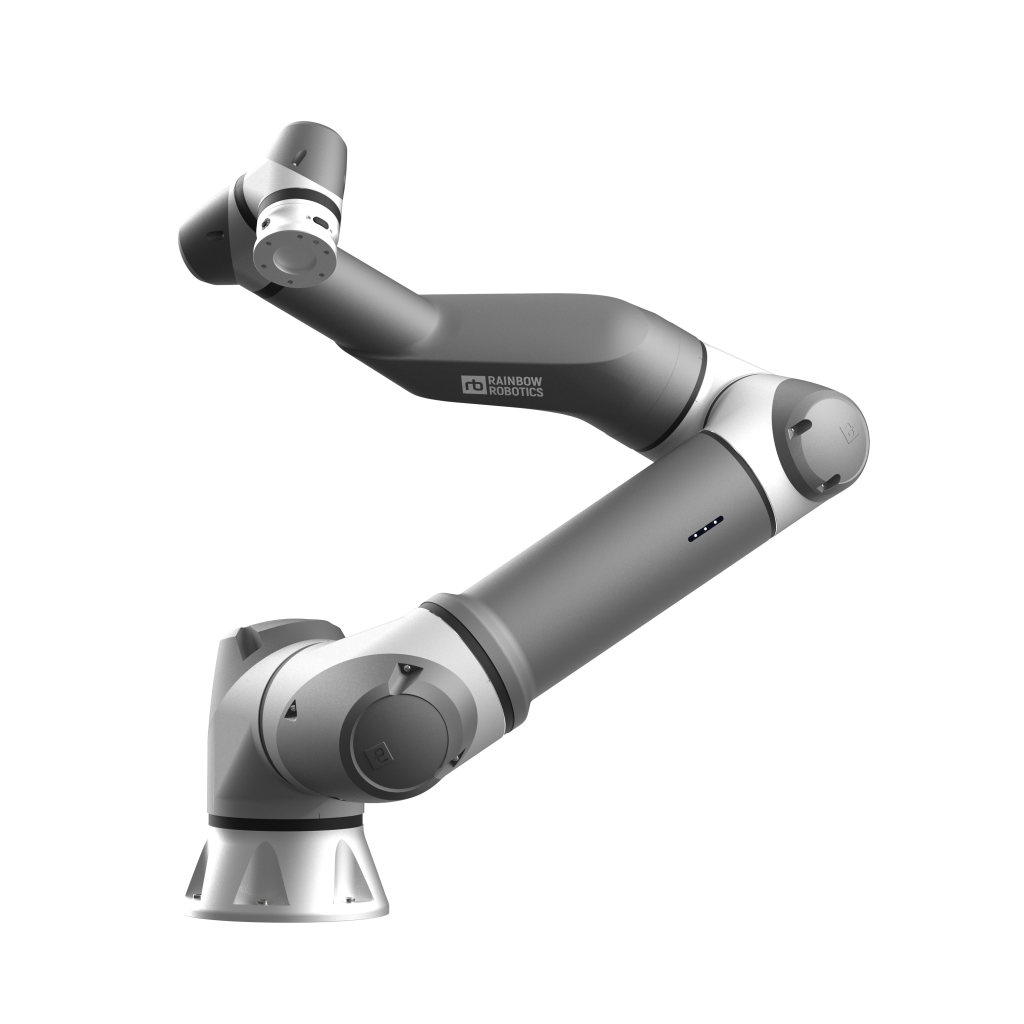

RB30-1400
Payload
6kg / 13.2lbs
Reach
920mm / 36.2inch
Footprint
Ø173mm / No direction restriction
Weight
21 kg

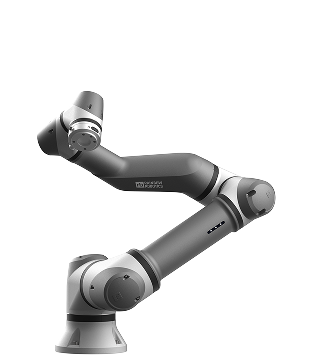

RB6-920
Minimizes work variation with precise motion quality
Designed to satisfy precision, repeatability, and expandability
Minimizes work variation with precise motion quality
Designed to satisfy precision, repeatability, and expandability
Reducers, brakes, and controllers are developed in-house to secure strong competitiveness in performance, durability, and cost structure

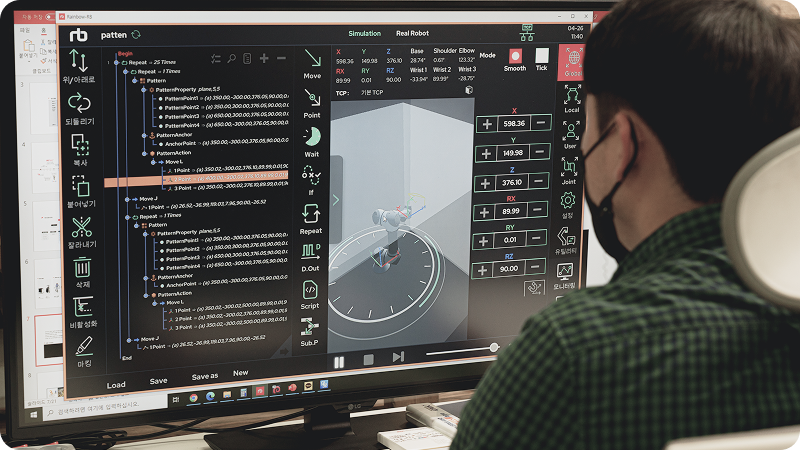

An intuitive interface makes programming and task setup easy for anyone
Certified to international standards including TUV SUD, CE, KC, and ISO for use across industries and countries
