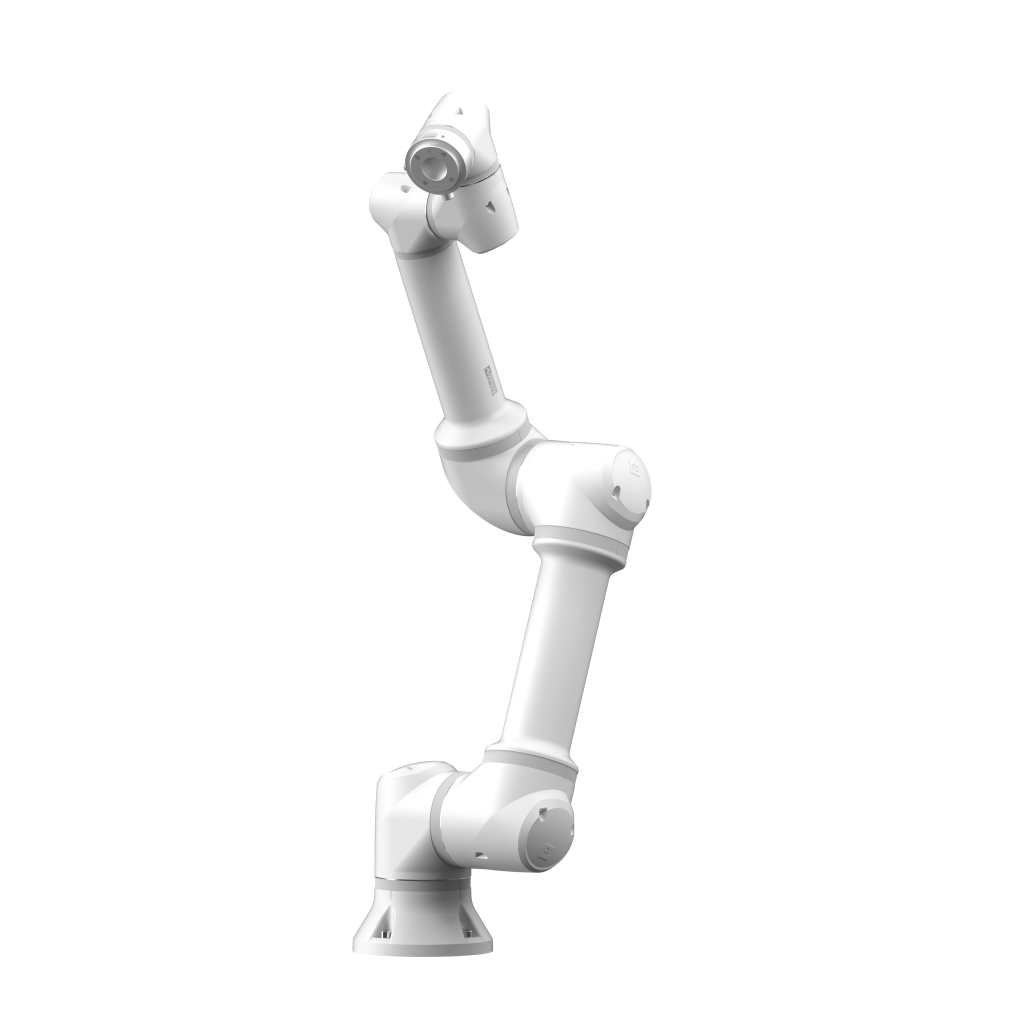

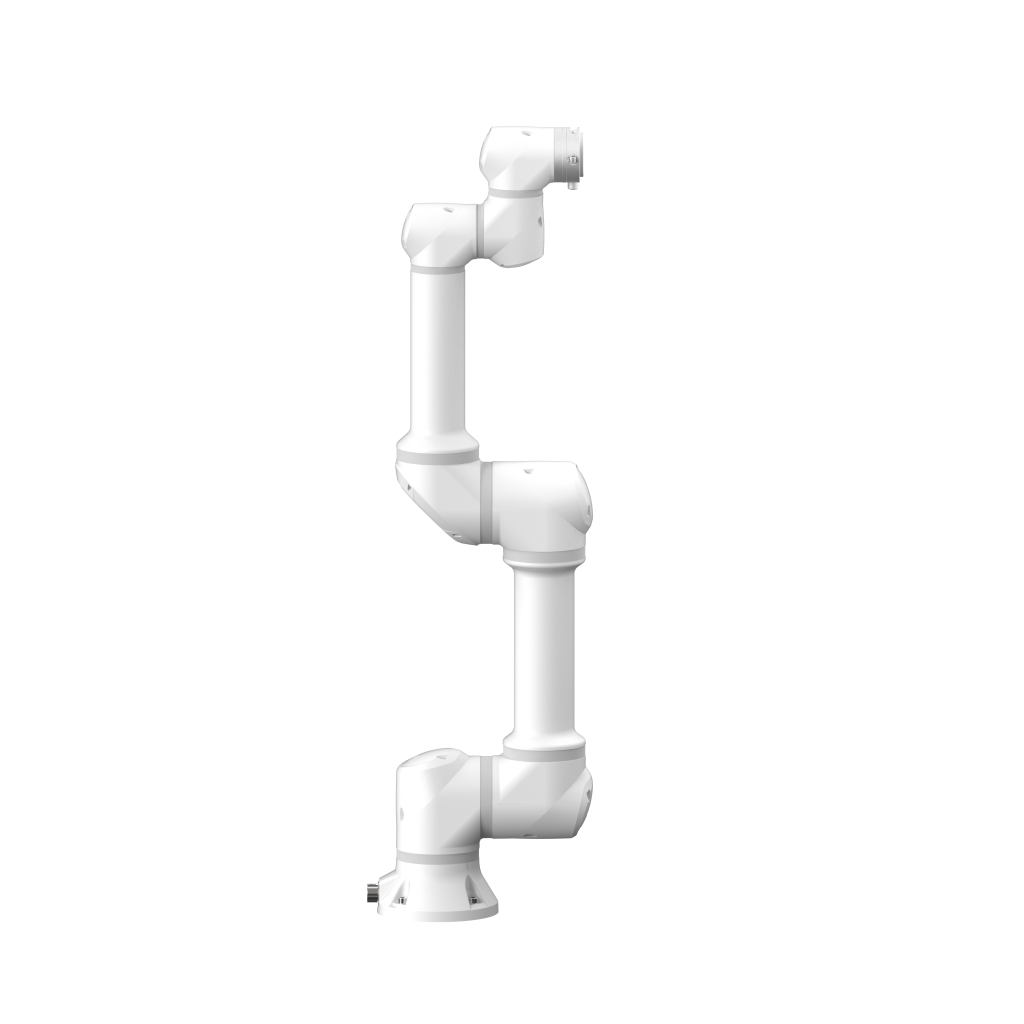

RB5-850N
RB5-850N
A standard-payload hygienic collaborative robot for F&B manufacturing and cooking environments
- Hygienic Design
- Washdown-Environment Ready
- 5 kg General-Purpose Payload
- Payload
- 5kg /11lbs
- Reach
- 927.7mm / 36.5inch
- Repeatability
- ±0.05mm
for the F&B industry
Hygiene/Durable Standard Model
RB5-850N with 5kg load and 850mm working radius

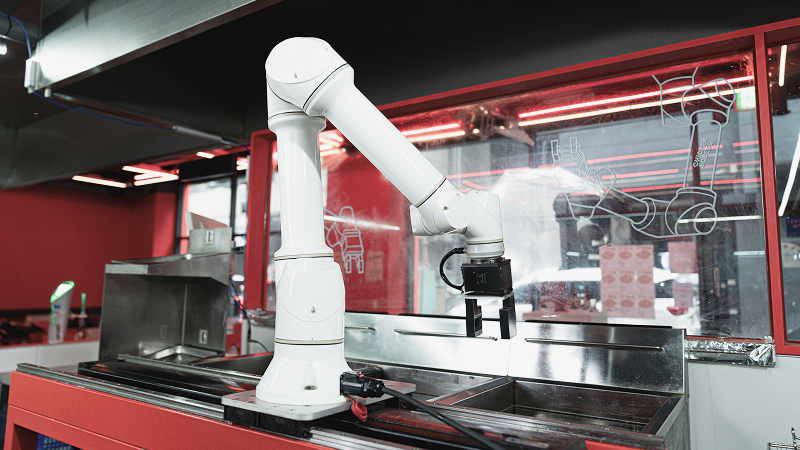

It is a cooperative robot for F&B manufacturing and cooking lines.
NSF ANSI 169 Structural design that meets food hygiene standards and
SUS304 based housing, IP66 waterproof and dustproof
It can be operated stably even in cleaning, steam, and wet environments that are difficult for general cooperative robots to respond to.
such as dispensing, blending, and cooking aids
It is suitable for small and medium-sized F&B automation processes,
It is used in various environments such as franchise stores and food manufacturing lines.
Key Features
Key Features
High versatility with standard payload capacity
The 5 kg payload is suitable for a wide range of cooking tools, containers, and food-handling tasks in small and medium F&B automation environments.
NSF/ANSI 169 food hygiene safety certification
Meeting international food hygiene standards, national regulations and
It can also respond to the various safety needs of the franchise headquarters.
Oil-free and lubricant-free structure for hygienic processes
The design does not require external lubricant, minimizing contamination in cooking environments and operating reliably even with food splashes, steam, and liquid exposure.
Enhanced corrosion and heat resistance
SUS304 hygienic housing and heat- and corrosion-resistant materials maintain stable performance even with steam and cleaning agents.
IP66 waterproof and dustproof protection
It operates stably in food manufacturing and cooking environments with a lot of moisture and water,
It also responds to cleaning and sterilization processes.
Stable cooking quality based on precise control
+/-0.05 mm repeatability and smooth trajectory control provide consistent quality in dispensing, mixing, blending, and other F&B processes.
High versatility with standard payload capacity
The 5 kg payload is suitable for a wide range of cooking tools, containers, and food-handling tasks in small and medium F&B automation environments.
NSF/ANSI 169 food hygiene safety certification
Meeting international food hygiene standards, national regulations and
It can also respond to the various safety needs of the franchise headquarters.
Oil-free and lubricant-free structure for hygienic processes
The design does not require external lubricant, minimizing contamination in cooking environments and operating reliably even with food splashes, steam, and liquid exposure.
Enhanced corrosion and heat resistance
SUS304 hygienic housing and heat- and corrosion-resistant materials maintain stable performance even with steam and cleaning agents.
IP66 waterproof and dustproof protection
It operates stably in food manufacturing and cooking environments with a lot of moisture and water,
It also responds to cleaning and sterilization processes.
Stable cooking quality based on precise control
+/-0.05 mm repeatability and smooth trajectory control provide consistent quality in dispensing, mixing, blending, and other F&B processes.
Specifications
| Payload | 5kg /11lbs |
|---|---|
| Reach | 927.7mm / 36.5inch |
| Repeatability | ±0.05mm |
| Footprint | Ø173mm / No direction restriction |
| Materials | Aluminum, Plastic, Steel |
| Tool I/O | M10 12-pin connector (12/24V, ~2A)EN ISO 9409-1-50-4-M6 |
| Cable Length (Robot Arm) | 5m / 196..8 in |
| Weight | 22kg / 48.5 lbs |
| Operating Environment | IP66 / 0~50°C |
| Power Consumption | Approx. 200W |
| Noise | 60dB(A) or less |
| Joint Range & Maximum Speed | J1: ±360°, ±180°/s ~ 360°/sJ2: ±360°, ±180°/s ~ 360°/sJ3: ±360°, ±180°/s ~ 360°/sJ4: ±360°, ±180°/s ~ 360°/sJ5: ±360°, ±180°/s ~ 360°/sJ6: ±360°, ±180°/s ~ 360°/s |
Hand Controller
The RB collaborative robot series includes a hand controller. Users can assign desired functions to the hand controller function buttons.
Collaborative Robot Operating System (SW)
In-house software designed for user convenience, integrated with core hardware to deliver high efficiency.
View Details
Standard Robot Control Box
The robot control box controls robot arm motion according to user-created programs.
| Specification | Value |
|---|---|
| I/O Ports | Digital Input 16 (PNP) Digital Output 16 (PNP) Analog Input 4 (0~10V) Analog Output 4 (0~10V) RS-232/422/485 Ethernet (TCP/IP, MODBUS TCP, Control Script) Siemens S7, OMRON Fins, Mitsubishi MC, etc ※ Dedicated I/O expansion module available |
| Power | 100-240V AC, 50~60 Hz |
| Dimensions | 454 x 240 x 416.2 mm |
| Weight | RB3-1200 / RB5-850 20.3 kg / RB10-1300 22.2 kg |
| Materials | EGI (Electro Galvanized Steel) |
Teaching Pendant
The Rainbow Robotics teaching pendant makes collaborative robot programming easy.
Dedicated I/O Expansion Module
When additional I/O ports are needed, the dedicated I/O expansion module can expand input and output ports without separate equipment such as a PLC.
| Specification | Value |
|---|---|
| I/O Ports | Digital Input 16 (PNP) Digital Output 16 (PNP) Analog Input 4 (0-10V) Analog Output 4 (0-10V) |
| Power | 100-240V AC, 50-60 Hz |
| Dimensions | 403 x 313 x 110mm |
| Weight | 500g |
| Materials | Aluminum |
| Note | Specifications may change to improve performance. |
Download
Downloads
| Select | Product | Resource type | Resource details | Download link |
|---|---|---|---|---|
| RBC Series Collaborative Robots | Catalog | RBC Series Catalog Catalog | ||
| Technical Data | RBC Series Manual Manual | |||
| Control box(CB04,CB05) Collaborative Robots | Drawing | Control box(CB04,CB05) Drawing | ||
| Control box(CB06) Collaborative Robots | Drawing | Control box(CB06) Drawing | ||
| Control box(CB07) Collaborative Robots | Drawing | Control box(CB07) Drawing | ||
| Control box(CB08) Collaborative Robots | Drawing | Control box(CB08) Drawing | ||
| Control box(CB09) Collaborative Robots | Drawing | Control box(CB09) Drawing | ||
| RBC-N Series Collaborative Robots | Certificate | RBC-N Series Certificate |
Control box(CB04,CB05)
DrawingControl box(CB06)
DrawingControl box(CB07)
DrawingControl box(CB08)
DrawingControl box(CB09)
DrawingRBC-N Series
CertificateA proven automation partner across diverse industries
