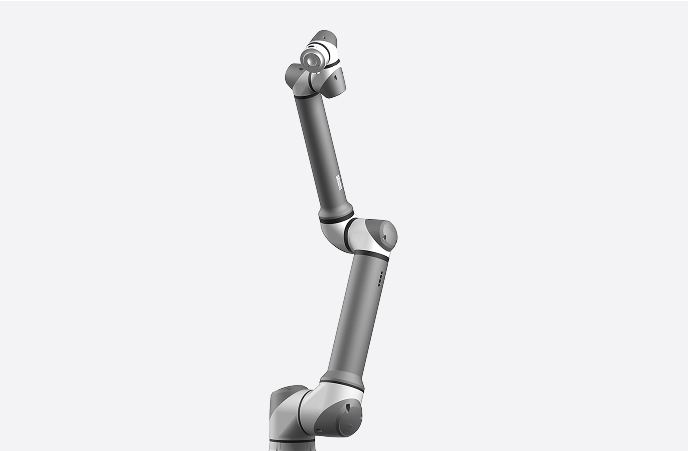

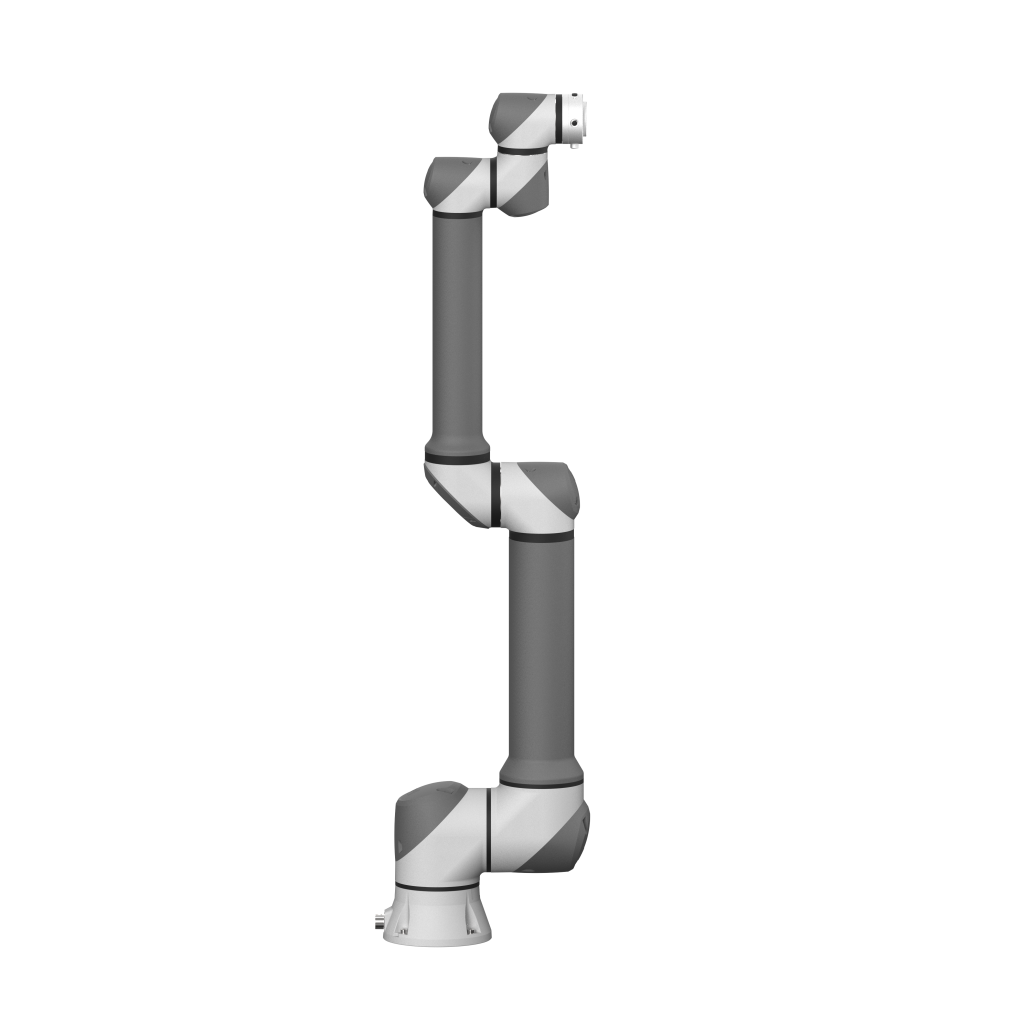

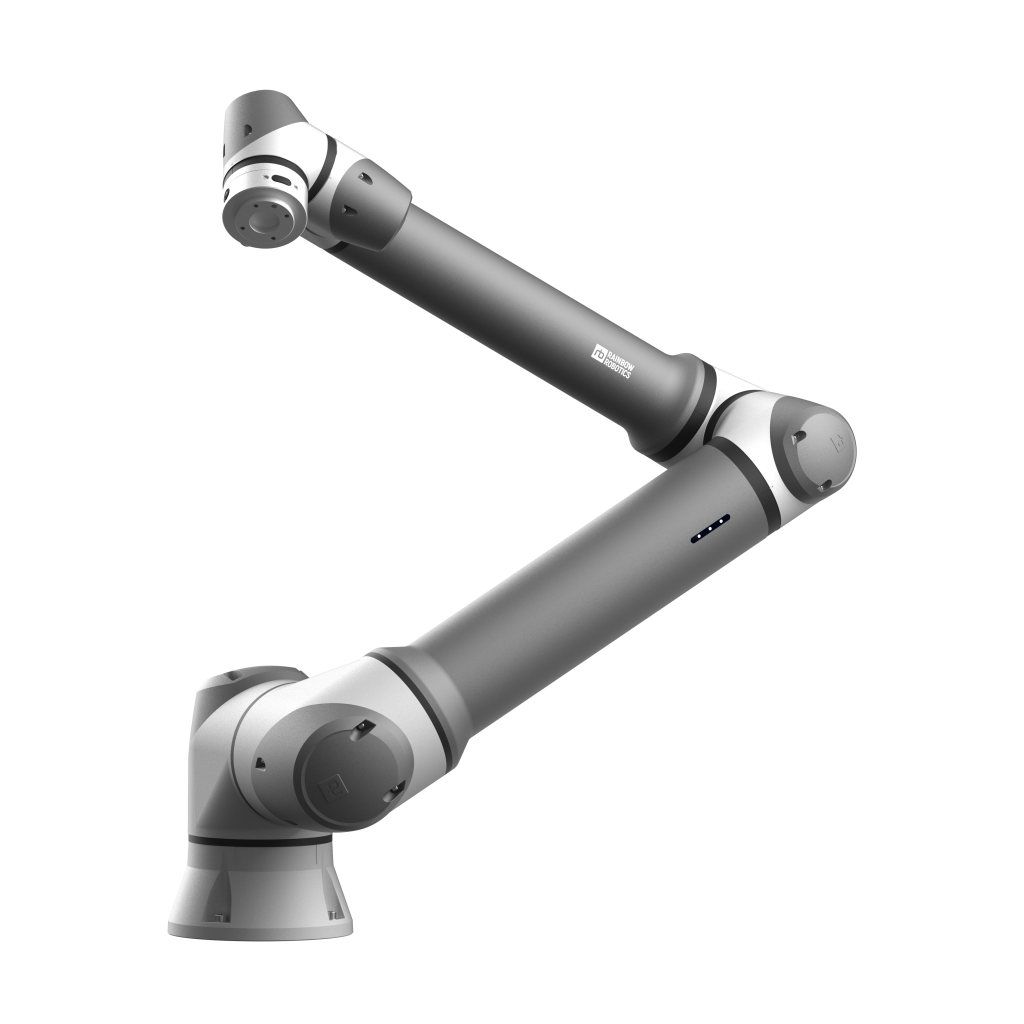

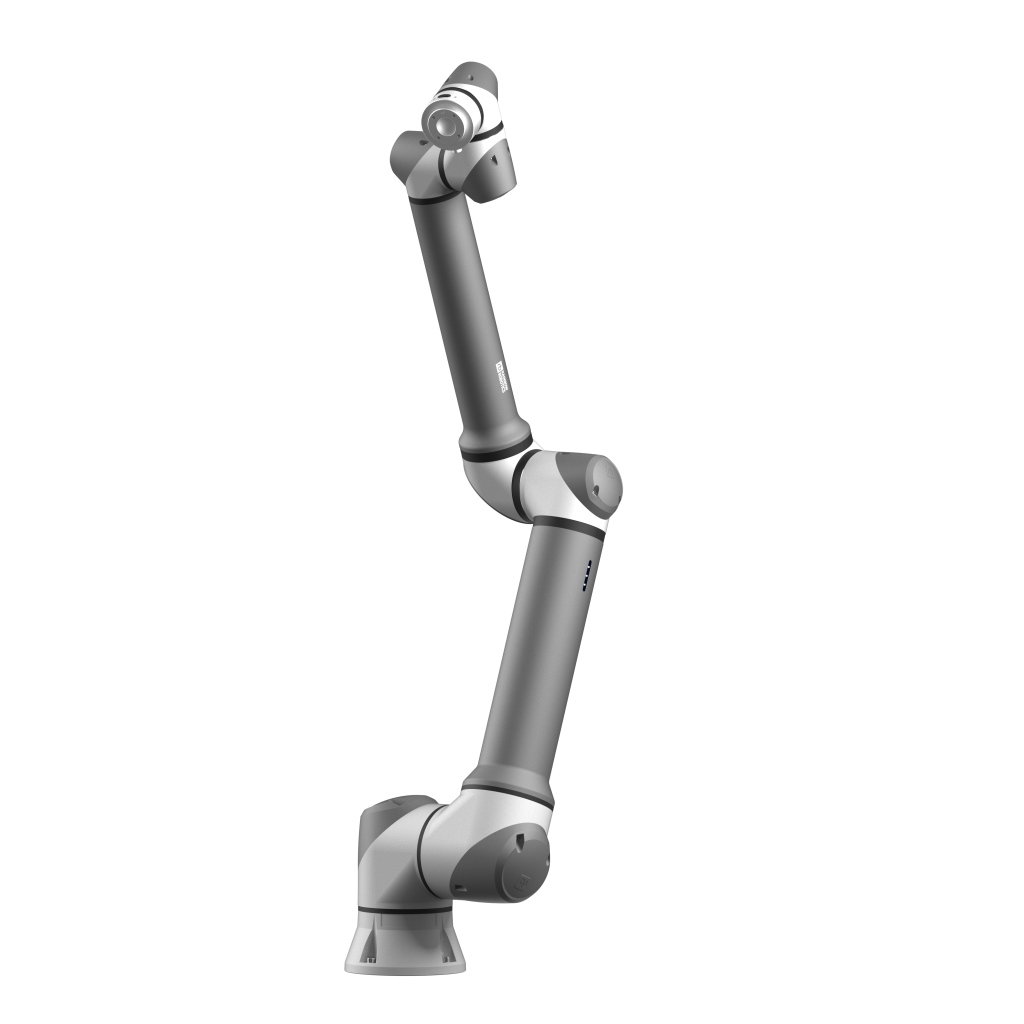

RB10-1300
RB10-1300
Slim body, precise motion, and optimized performance for light-duty tasks
- Flexible Equipment Changeover
- High-Payload Precision
- 10 kg Payload
- Payload
- 10kg / 22lbs
- Reach
- 1300mm / 51.2in
- Repeatability
- ±0.05mm
applied to a wide range of industrial processes
Heavy Load Cooperative Robot
RB10-1300 is a representative collaborative robot for medium-payload manufacturing processes. With a 10 kg payload and 1300 mm reach, it is used for machine tending, packaging, palletizing, part transfer, and more.
High-rigid structure, precise control performance, and IP66-grade protection design are applied
In various environments such as metal, automobile, food, and logistics industries
Implement stability and efficiency at the same time.
Key Features
Key Features
Rigid design for 10 kg medium-payload work
Designed for stable operation without vibration in high-load processes such as part transfer, machine loading, and packaging.
Extended 1300 mm work range
The wide reach provides versatility for equipment-to-equipment transfer, palletizing, jig-to-jig transitions, and other mid-range tasks.
IP66 readiness for industrial environments
Stable operation is possible in environments exposed to dust, moisture, and cutting fluids, including metalworking, food, and logistics sites.
Precision process support with +/-0.05 mm repeatability
It maintains consistent trajectory quality and accuracy for precision assembly, inspection, and machining lines.
Stable real-time motion control
The Linux-based real-time ROS architecture delivers predictable motion, while collision detection and gravity compensation improve safety and usability.
Expandable interfaces for diverse peripherals
M8 8-pin I/O, DIN/PNP output, and MBus RTU support broad integration with grippers, sensors, vision systems, and PLCs. A 5 m cable also improves installation flexibility.
Rigid design for 10 kg medium-payload work
Designed for stable operation without vibration in high-load processes such as part transfer, machine loading, and packaging.
Extended 1300 mm work range
The wide reach provides versatility for equipment-to-equipment transfer, palletizing, jig-to-jig transitions, and other mid-range tasks.
IP66 readiness for industrial environments
Stable operation is possible in environments exposed to dust, moisture, and cutting fluids, including metalworking, food, and logistics sites.
Precision process support with +/-0.05 mm repeatability
It maintains consistent trajectory quality and accuracy for precision assembly, inspection, and machining lines.
Stable real-time motion control
The Linux-based real-time ROS architecture delivers predictable motion, while collision detection and gravity compensation improve safety and usability.
Expandable interfaces for diverse peripherals
M8 8-pin I/O, DIN/PNP output, and MBus RTU support broad integration with grippers, sensors, vision systems, and PLCs. A 5 m cable also improves installation flexibility.
Specifications
| Payload | 10kg / 22 lbs |
|---|---|
| Reach | 1300mm / 51.2 in |
| Repeatability | ±0.05mm |
| Footprint | Ø196mm / No orientation restriction |
| Materials | Aluminum, Plastic, Steel |
| Tool I/O | M8 8-pin connector 2EA (12/24V, ~2A)Power, Din 6 port (PNP), Dout 2 port (PNP), MBUS RTUEN ISO 9409-1-50-4-M6 |
| Cable Length (Robot Arm) | 5m / 196.8 in (Custom lengths available) |
| Weight | 36.5 kg / 80.47 lbs |
| Operating Environment | IP66 / 0-50 °C/ 32-122 °F(≤90% RH non-condensing) |
| Power Consumption | Approx. 200W |
| Noise | 65dB(A) or less |
| Joint Range & Maximum Speed | J1: ±360° ±120°/sJ2: ±360° ±120°/sJ3: ±165° ±180°/sJ4: ±360° ±180°/sJ5: ±360° ±180°/sJ6: ±360° ±180°/s |
| Maximum TCP speed during normal operation | 1m/s |
Hand Controller
The RB collaborative robot series includes a hand controller. Users can assign desired functions to the hand controller function buttons.
Collaborative Robot Operating System (SW)
In-house software designed for user convenience, integrated with core hardware to deliver high efficiency.
View Details
Standard Robot Control Box CB06
The robot control box controls robot arm motion according to user-created programs.
| Specification | Value |
|---|---|
| I/O Ports | Digital Input 16 (PNP) Digital Output 16 (PNP) Analog Input 4 (0-10V) Analog Output 4 (0-10V) USB (4 ports), LAN (RJ45 1 port) Ethernet (TCP/IP, MODBUS TCP, Control Script) Siemens S7, OMRON Fins, Mitsubishi MC EtherNet/IP, ProfiNet, OPC-UA, ete ※ Dedicated I/O expansion module available |
| Power | 100-240V AC, 50-60 Hz Single Phase |
| Dimensions | 443 x 260 x 371 mm : Body 443 x 260 x 411 mm : With handle |
| Weight | 15kg |
| Materials | Electro Galvanized Steel |
| Certification / Compatible Models | All models |
Teaching Pendant
The Rainbow Robotics teaching pendant makes collaborative robot programming easy.
Built-in Pneumatic Option
The first collaborative robot option with built-in pneumatic lines, selectable by pneumatic-line and signal-line configuration.
| Model | Pneumatic Lines | Signal Lines |
|---|---|---|
| RB5-850A1 | 4 EA(Ø 4 mm tube) | None |
| RB5-850A2 | 5 EA(Ø 4 mm tube) | 2 Pin(AWG28) |
| RB3-1200A1 | 4 EA(Ø 4 mm tube) | None |
| RB3-1200A2 | 5 EA(Ø 4 mm tube) | 12 Pin(AWG28) |
| RB10-1300A1 | 1 EA(Ø 8 mm tube) | None |
| RB10-1300A2 | 1 EA(Ø 8 mm tube) | 12 Pin(AWG28) |
| RB10-1300A3 | 4 EA(Ø 4 mm tube) | None |
Dedicated I/O Expansion Module
When additional I/O ports are needed, the dedicated I/O expansion module can expand input and output ports without separate equipment such as a PLC.
| Specification | Value |
|---|---|
| I/O Ports | Digital Input 16 (PNP) Digital Output 16 (PNP) Analog Input 4 (0-10V) Analog Output 4 (0-10V) |
| Power | 100-240V AC, 50-60 Hz |
| Dimensions | 403 x 313 x 110mm |
| Weight | 500g |
| Materials | Aluminum |
| Note | Specifications may change to improve performance. |
Download
Downloads
| Select | Product | Resource type | Resource details | Download link |
|---|---|---|---|---|
| RBC Series Collaborative Robots | Catalog | RBC Series Catalog Catalog | ||
| Technical Data | RBC Series Manual Manual | |||
| RB10-1300E Collaborative Robots | Drawing | RB10-1300E Drawing | ||
| Certificate | RB10-1300E Certificate | |||
| Control box(CB04,CB05) Collaborative Robots | Drawing | Control box(CB04,CB05) Drawing | ||
| Control box(CB06) Collaborative Robots | Drawing | Control box(CB06) Drawing | ||
| Control box(CB07) Collaborative Robots | Drawing | Control box(CB07) Drawing | ||
| Control box(CB08) Collaborative Robots | Drawing | Control box(CB08) Drawing | ||
| Control box(CB09) Collaborative Robots | Drawing | Control box(CB09) Drawing |
Control box(CB04,CB05)
DrawingControl box(CB06)
DrawingControl box(CB07)
DrawingControl box(CB08)
DrawingControl box(CB09)
